SeamRack 2.0

Standing Seam Mounting System
Low Cost
Non Penetrating
Easy To Install

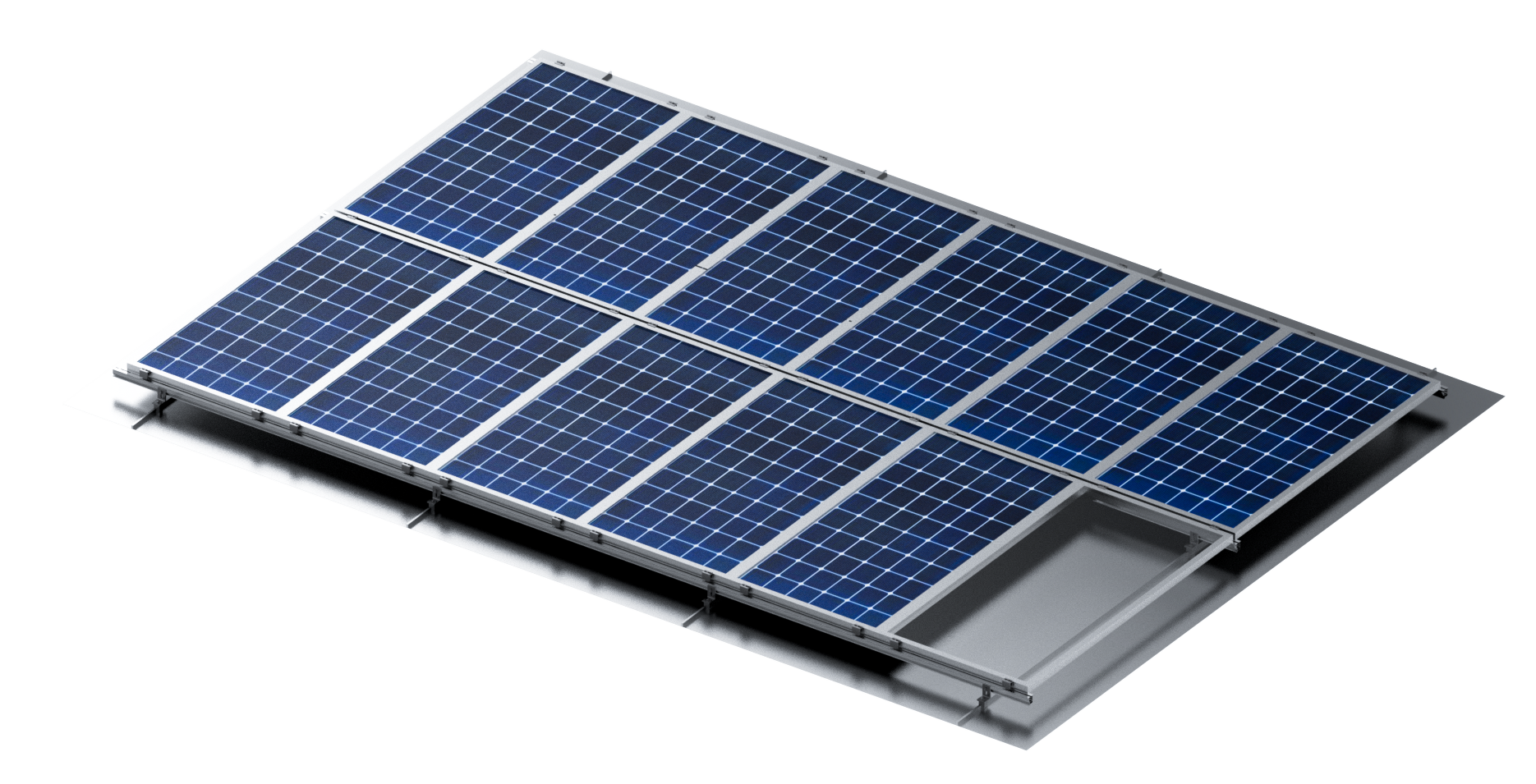

SeamRack 2.0 is a versatile standing seam solar mounting solution, featuring complete adaptability for both fully-railed and shared-rail mounting configurations. The system uses non-penetrating seam clamps for mounting directly to standing seams, without jeopardizing the integrity of the roof.

SeamRack 2.0's adaptable design is complimented by its simple installation and feature-rich mounting rails. The KB10 rails offer integrated wire management, side mounting, and common fasteners for a clean and fast installation.

SeamRack 2.0
Highlights
1
Rails pre-cut to custom lengths
2
Simple module installation at any point along rails
3
Non-penetrating clamps maintain roof’s warranty
SeamRack 2.0
Features
  • Integrated wire management
  • Easy installation using only four components
  • Configured for fully-railed and shared-rail systems
  • Side-mounted with T-bolts
  • Low overall system weight
  • 25-year standard product warranty, extended warranty available

Distribution Load: 1.5 – 3 lbs/ft²

Inclinations: Flush

Wind Speed: Up to 190 mph

Material: 6000 series aluminum

Module Type: All standard size framed PV modules

Wire management: Built into KB10 rail

Orientation: Landscape, Portrait

Rail Length: 13′, 20′

Configurations: Shared-Rail, Fully-Railed

Roof Pitch: 0°- 45°

Roof Type: All standing seam metal roofs

Module Spacing: Customizable based on project requirements

Roof Clearance: Up to 8″ (Bottom of module to roof)

Span Lengths: Dependent on project locations, 3′- 8′
