AeroRack East West

Flat Roof Mounting System
Lightweight
Non Penetrating
Easy To Install

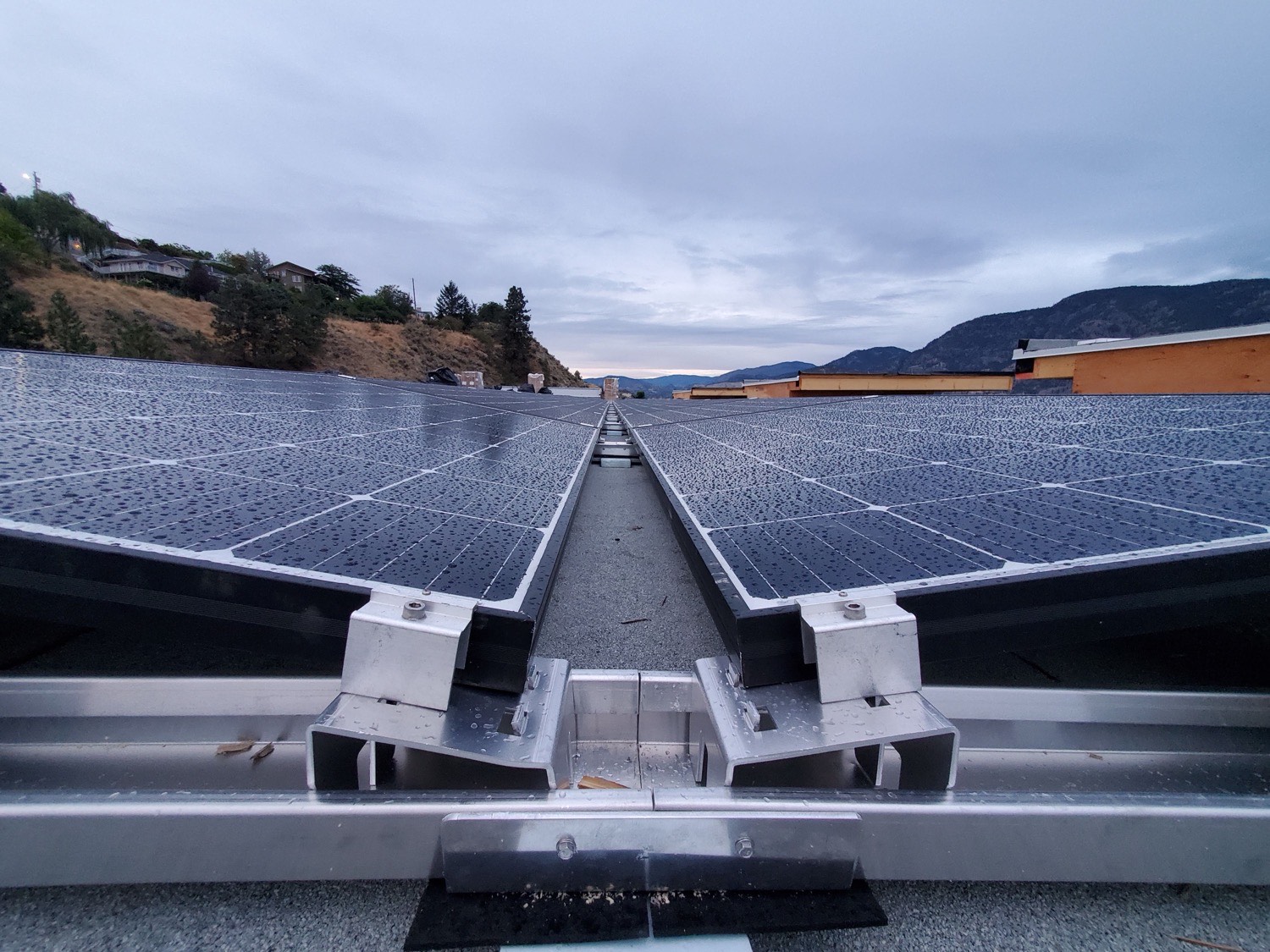

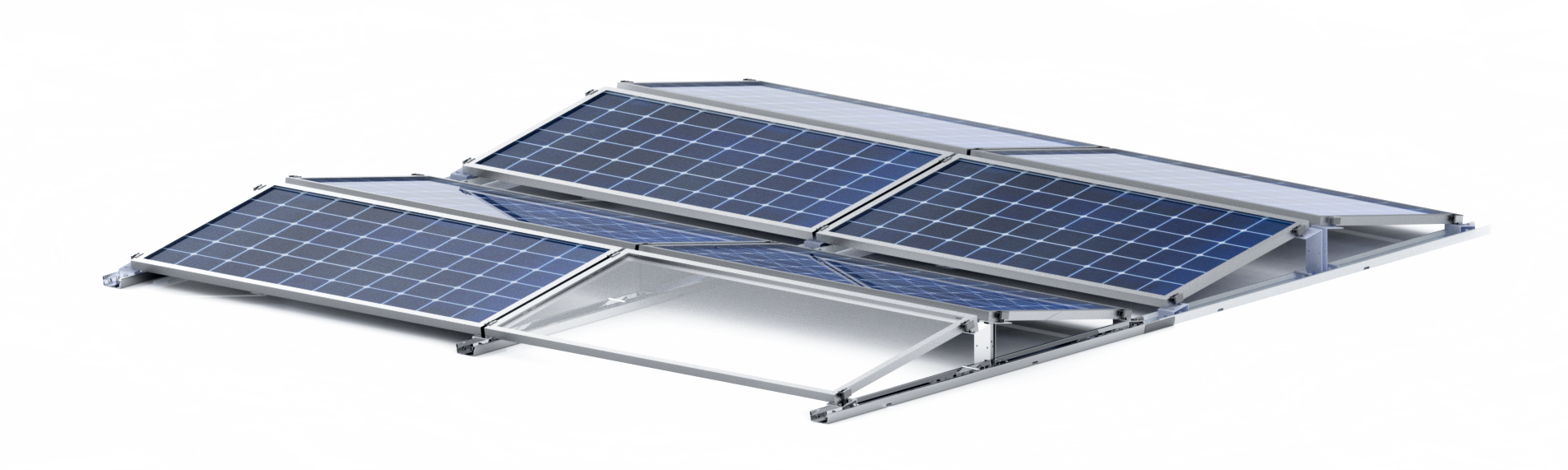

AeroRack East West is the latest aerodynamic rail-based mounting solution. KB Racking has refined its rail based solution with an east-west orientation, to provide customers with the same core elements of integrated wire management that allows for installers to install more panels, while saving space on the roof. With an east-west configuration, this system offers best value by reducing costs and installation time.

AeroRack East West features low ballast requirements and structural integrity, while offering customizable solutions with its flexibility in row spacing and tilt angle.

AeroRack East West
Highlights
1
Minimal ballast requirements for weight challenged roofs
2
Integrated wire management
3
Rail based solution with an east-west orientation
AeroRack East West
Features
  • Conforms to UL standard 2703. Certified to ULC/ORD STD C1703
  • Rail based design provides stiffness, reducing ballast requirements and roof loads
  • Non-penetrating design prevents damage to your roof
  • Windshields include integrated press-fit nuts for a faster installation
  • Aluminum components ensure long lasting performance
  • Pre-attached rubber mats offer additional protection for the roof
  • 25-year standard product warranty

Inclinations: 5°, 10°, 12°, 15°, 20° (Landscape), 3°, 5° (Portrait)

Distribution Load: 2 – 5 lbs/ ft²

Orientation Panel: Landscape, Portrait

Panel Type: Frame PV module

Material: 3000 series Aluminum

Module Spacing: 0.2” - 15”/0.01m - 0.4m (Landscape/Portrait)

Roof Type: All types of flat roofs

Roof Pitch: Up to 5°

Grounding Method: Grounding once per array - ETL Certified grounding method

Building Height: Up to 60’/ 18.3m (higher upon request)

Ballast Weight: Dependent on wind zone and exposure category

Wind Speed: Up to 170 mph (274 km/h)

Wind Tunnel Testing: Complies with ASCE 7-10, NBCC 2005, IBC 2012 & OBC 2012 standards

Certification: Conforms to UL STD 2703. Certified to ULC/ORD STD C1703

Please check back later.

Moose Power Inc. has used the AeroRack® system to build 5 projects, amounting to 810kW of solar energy. The KB Racking team provided exceptional service and a quality racking solution that was simple to install. We look forward to working with KB Racking on more projects.

Andy Knapp
Managing Director
,
Moosepower
Recent Projects
Toronto, ON
Project Size:
627kW
Completion date:
03/2021

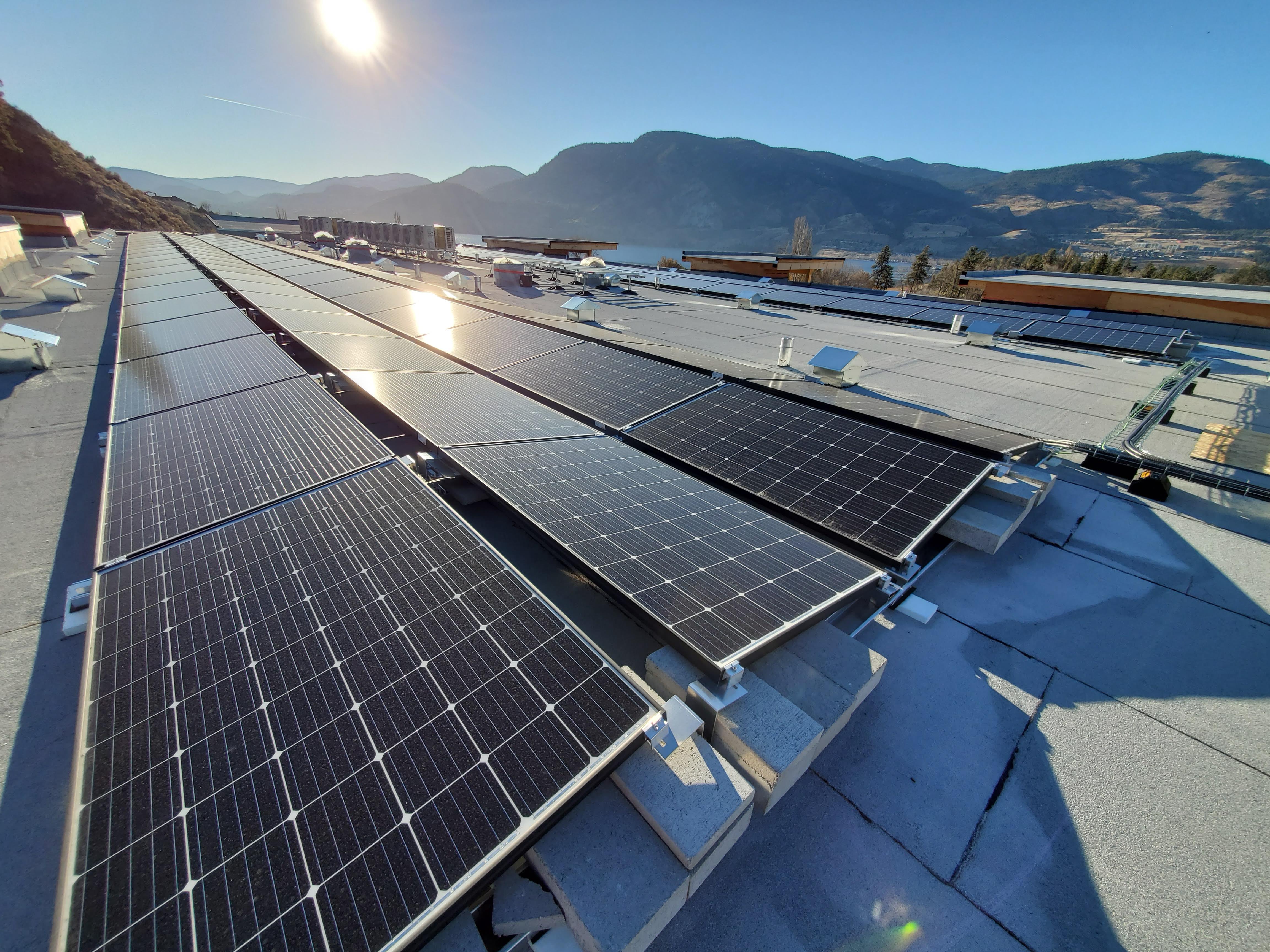

Kelowna, BC
Project Size:
120kW
Completion date:
05/2020
