EkonoRack 2.0

Flat Roof Solar Mounting System
Low Cost
Lightweight
Quick Install

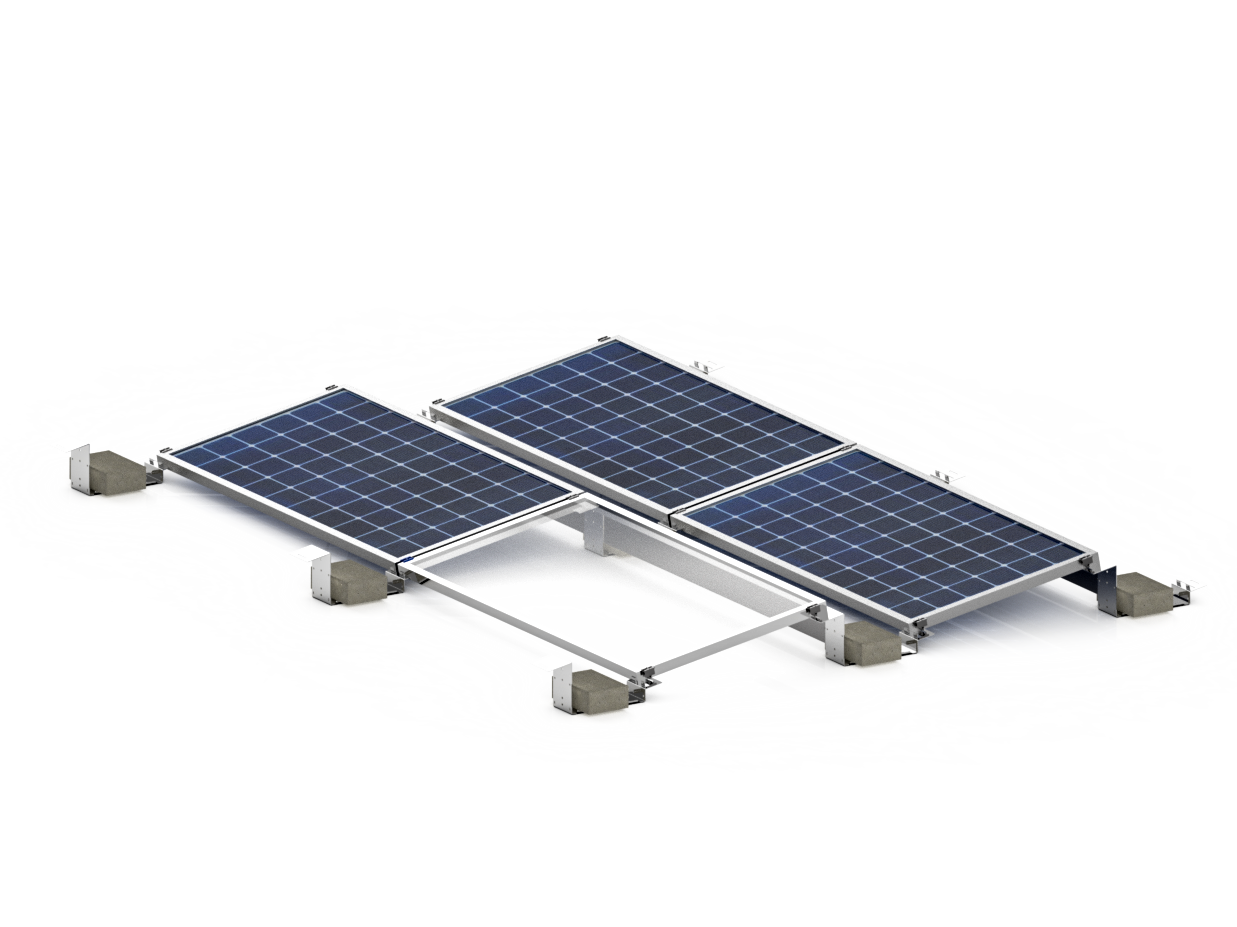

EkonoRack® 2.0 is the simplest non-penetrating solar mounting solution for commercial flat rooftops. The system’s ETL Certification attests to its high standard of safety and robust design, allowing it to be grounded with only one grounding lug per array.

EkonoRack® 2.0’s innovative design is composed of only one major component, acting as a ballast tray windshield mount and multiple panel support. The system’s pre-attached roof mats save time on installation and provide maximum protection for the roof.

KB RACKING® offers a 25-year standard product warranty, with extended warranty available.

EkonoRack 2.0
Highlights
1
Only 3 main components for rapid installation
2
Pre-attached roof protection mats approved by major roofing manufacturers
3
Customizable row spacing, tilt angle and orientation
EkonoRack 2.0
Features
  • Single point grounding per array due to UL 2703 Listing
  • Single tool installation
  • Class A fire tested for Type 1 and Type 2 panels
  • Non-penetrating installation prevents leaks
  • Integrated rubber roof protection mats for a hassle-free installation
  • Fast installation with click-in module clamps: 4-person crew can install >125kW (400 modules) in a 8 hour work day.
  • High-grade, corrosion-free aluminum components
  • Available as Wire Management Solution
  • 25-year standard product warranty, with extended warranty available

Inclinations: 5°, 7.5°, 10°, 15°, 20° (Landscape), 5° (Portrait)

Distribution Load: 3 – 8 lbs/ ft²

Orientation Panel: Landscape, Portrait (5°)

Panel Type: Frame PV module

Material: 3000 series Aluminum

Row Spacing: 49.6 – 68.9”/ 1.260 – 1.750m (Landscape), 84.3 – 96.5”/2.140 – 2.450m (Portrait)

Roof Type: All types of flat roofs

Roof Pitch: Up to 5°

Grounding Method: ETL certified grounding clamp, grounded once per array as per UL2703

Building Height: Up to 60’/ 18.3m (higher upon request)

Ballast Weight: Dependent on wind zone and exposure category

Wind Speed: Up to 170 mph (274 km/h)

Wind Tunnel Testing: Boundary layer wind tunnel tested by RWDI – based on ASCE 7-10, NBCC 2005, IBC 2012 & OBC 2012 standards

Patent Number: US D774,874 S

Working with KB Racking’s EkonoRack 2.0 was simple and easy. Not only was the system very straight forward and easy to install, KB Racking project management provided outstanding support and customer service making them our go to company for commercial solar racking.

Elijah Johnson-Heck
Lead Designer
,
Native Solar
Recent Projects
Milford, CT
Project Size:
292kW
Completion date:
08/2020
Eatontown, NJ
Project Size:
692kW
Completion date:
08/2020
Ridgefield Park, NJ
Project Size:
772.9kW
Completion date:
08/2020
Lawrence, MA
Project Size:
126.7kW
Completion date:
08/2020
Millersville, MD
Project Size:
232.5kW
Completion date:
12/2019
Pennsauken Township, NJ
Project Size:
748.1kW
Completion date:
11/2019
